Integrating Power Automate with ELITEA AI Agents

Introduction

Purpose and Overview

Power Automate integration enables bidirectional communication: Inbound Triggers (Microsoft 365 → ELITEA):

React to Teams Messages: Automatically process incoming Teams messages using ELITEA AI agents
Process Emails: Route incoming emails to ELITEA agents for intelligent processing
Scheduled Processing: Periodically check for mentions or specific conditions

Outbound Actions (ELITEA → Microsoft 365):

Reply to Teams: Send messages back to Teams channels or chats
Send Emails: Compose and send emails via Outlook
Reply to Emails: Respond to email threads programmatically

This guide covers two patterns:

Power Automate triggering ELITEA - Flows that send data to ELITEA agents
ELITEA triggering Power Automate - Agents using OpenAPI tools to invoke Power Automate HTTP endpoints

Key Terms

Term	Description
Power Automate	Microsoft’s workflow automation platform (formerly Microsoft Flow)
Flow	An automated workflow in Power Automate
Trigger	The event that initiates a Power Automate flow
HTTP Trigger	An endpoint that allows external systems to invoke a flow
ELITEA Agent	An AI-powered assistant configured within the ELITEA platform
Conversation	A chat session in ELITEA that maintains context across multiple messages
Participant	An entity (agent or user) added to an ELITEA conversation
Personal Access Token (PAT)	Authentication credential for ELITEA API calls
OpenAPI Tool	A specification that allows ELITEA agents to call external APIs

Prerequisites

Before you begin, ensure you have:

Access to Microsoft Power Automate (Premium license recommended for HTTP triggers)
An ELITEA account with a configured agent
ELITEA Personal Access Token (PAT) for API authentication
The following ELITEA identifiers:

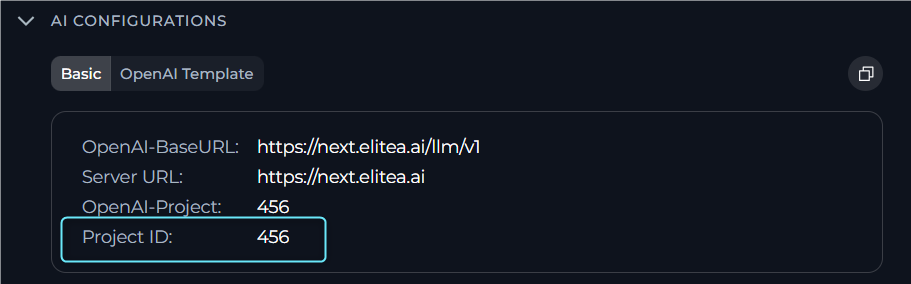

- Project ID: Found in Settings → Configuration
- Agent ID: The ID of your configured agent
- Agent Version ID: The specific version of your agent to use
- Toolkit ID: (Optional) For attachment storage configuration

Navigate to your agent in ELITEA and note the URL structure or check the agent details panel for the required IDs.

ELITEA API Overview

Power Automate communicates with ELITEA through the following API endpoints:

Core Endpoints

Purpose	Method	Endpoint
Create Conversation	POST	`{{API_URL}}chat/conversations/prompt_lib/{{ProjectID}}`
Add Agent Participant	POST	`{{API_URL}}chat/participants/prompt_lib/{{ProjectID}}/{{ConversationID}}`
Send Message	POST	`{{API_URL}}chat/messages/prompt_lib/{{ProjectID}}/{{ConversationUUID}}`
Check Existing Conversation	GET	`{{API_URL}}chat/conversations/prompt_lib/{{ProjectID}}/?query={{name}}&limit=1&source=alita`
Get Conversation Details	GET	`{{API_URL}}chat/conversation/prompt_lib/{{ProjectID}}/{{ConversationID}}`
Configure Attachment Storage	PUT	`{{API_URL}}chat/attachment_storage/prompt_lib/{{ProjectID}}/{{ConversationID}}`
Upload Attachment	POST	`{{API_URL}}chat/attachments/prompt_lib/{{ProjectID}}/{{ConversationID}}`

Base URLs

Environment	URL
Production (next)	`https://next.elitea.ai/api/v1/`
Development	`https://dev.elitea.ai/api/v1/`

Authentication

All API requests require a Bearer token in the Authorization header:

Authorization: Bearer {{Your_ELITEA_PAT}}

Part 1: Power Automate → ELITEA (Inbound Triggers)

This section covers flows that send data from Microsoft 365 to ELITEA agents.

Setup and Configuration

Step 1: Prepare ELITEA Agent

Navigate to Agents in your ELITEA project
Create or select an existing agent for your automation
Configure the agent with appropriate instructions for handling automated requests
Note the following values:
- Agent ID: Visible in agent details
- Agent Version ID: Found in the version selector

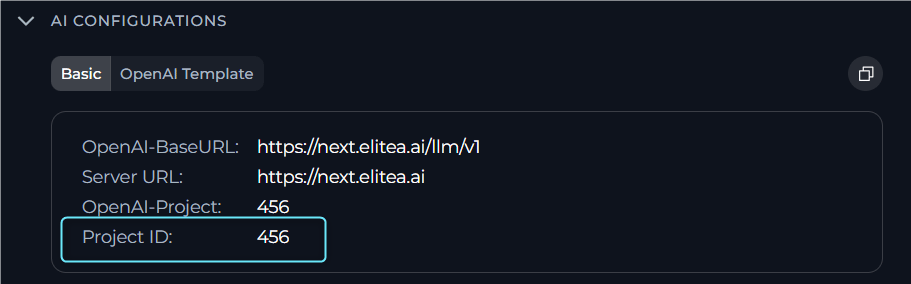

- Project ID: Located in Settings → Configuration

Include clear instructions in your agent about the expected input format and how to respond. For example:

For email processing: “You will receive email content. Reply via email using the message ID provided.”
For Teams: “This is a Teams request. You MUST reply via Teams.”

Step 2: Generate Personal Access Token

Go to Settings → Personal Access Tokens
Click Create Token
Provide a descriptive name (e.g., “Power Automate Integration”)
Copy and securely store the generated token

Store your PAT securely. Never expose it in client-side code or share it publicly. Consider using environment variables or secure storage in Power Automate.

Scenario 1: React to Teams Messages

This flow automatically responds to Teams chat messages using an ELITEA agent.

Flow Overview

Trigger: When a new chat message is added (Teams)
    │
    ├─ Initialize Variables (API_URL, PROJECT_ID, AGENT_ID, etc.)
    │
    └─ For each message:
        │
        ├─ Get message details
        ├─ Get chat details (detect chat type)
        ├─ Check if @mentioned (for group/meeting chats)
        ├─ Detect reply/forward messages (optional)
        │
        ├─ Condition: Should process?
        │   - 1:1 chat: Always process
        │   - Group/Meeting: Only if @mentioned
        │   - Filter out bot's own messages
        │   - Filter out system events
        │
        ├─ Send immediate acknowledgment: "Working on your question..."
        │
        ├─ Build chat history from recent messages
        │
        ├─ Check for existing ELITEA conversation
        │   ├─ If exists: Retrieve participant ID
        │   └─ If new: Create conversation → Add agent → Get participant ID
        │
        ├─ Process hosted attachments (screenshots)
        │   └─ Upload to ELITEA attachment storage
        │
        ├─ Compose user input with context:
        │   - Message context (reply/forward indicators)
        │   - Chat history
        │   - Reply instructions with chat type
        │
        └─ Send message to ELITEA agent

Step-by-Step Configuration

1. Create the Flow

Navigate to make.powerautomate.com
Click Create → Automated cloud flow
Name: “React on Teams message trigger”
Trigger: When a new chat message is added (Microsoft Teams)

2. Initialize Variables

Add the following Initialize variable actions in sequence:

Variable Name	Type	Example Value
ChatHistory	String	(empty)
API_URL	String	`https://next.elitea.ai/api/v1/`
AGENT_ID	String	`62`
AGENT_VERSION_ID	String	`93`
PROJECT_ID	Integer	`630`
attachments	String	(empty)
attachment_info	String	(empty)

3. Process Messages

Add For each action on triggerOutputs()?['body/value']: Get Message Details:

Action: HTTP Request (Teams connector)
URI: /v1.0/me/chats/@{item()?['conversationId']}/messages/@{item()?['messageId']}
Method: GET

4. Detect Chat Type

Teams has three chat types that require different handling:

Chat Type	Value	Behavior
1:1 Chat	`oneOnOne`	Respond to all messages
Group Chat	`group`	Respond only when @mentioned
Meeting Chat	`meeting`	Respond only when @mentioned

Get Chat Details:

Action: HTTP Request (Teams connector)
URI: /v1.0/me/chats/@{item()?['conversationId']}
Method: GET

Compose_chatType:

Inputs: @body('Get_Chat_Details')?['chatType']

5. Detect @Mentions

For group and meeting chats, check if the bot was mentioned using the mentions array from the message details.

The Graph API returns a mentions array containing each @mention in the message:

{
  "mentions": [
    {
      "id": 0,
      "mentionText": "Elitea Bot",
      "mentioned": {
        "user": {
          "id": "d346094f-19d8-48e7-b53e-fd7909afff91",
          "displayName": "Elitea Bot"
        }
      }
    }
  ]
}

Compose_isMentioned (using Bot User ID - most reliable):

@contains(string(body('Get_Message_details')?['mentions']), 'YOUR_BOT_USER_ID')

Replace YOUR_BOT_USER_ID with your bot’s actual user ID (e.g., d346094f-19d8-48e7-b53e-fd7909afff91). Alternative (check by display name):

@contains(string(body('Get_Message_details')?['mentions']), '"displayName":"Elitea Bot"')

6. Detect Reply and Forwarded Messages

Optionally detect if a message is a reply or forwarded content: Compose_isReply:

@contains(body('Get_Message_details')?['body']?['content'], 'schema.skype.com/Reply')

Compose_isForwarded:

@contains(body('Get_Message_details')?['body']?['content'], 'schema.skype.com/Forward')

Compose_MessageContext:

@concat(
  if(outputs('Compose_isReply'), '[REPLY] ', ''),
  if(outputs('Compose_isForwarded'), '[FORWARDED] ', '')
)

7. Filter Messages (Main Condition)

Combine all checks into a single condition to determine if the message should be processed: Condition Expression (Advanced Mode):

@and(
  not(equals(outputs('Compose_username'), 'Elitea Bot')),
  equals(body('Get_Message_details')?['messageType'], 'message'),
  equals(body('Get_Message_details')?['eventDetail'], null),
  or(
    equals(outputs('Compose_chatType'), 'oneOnOne'),
    and(
      or(
        equals(outputs('Compose_chatType'), 'group'),
        equals(outputs('Compose_chatType'), 'meeting')
      ),
      outputs('Compose_isMentioned')
    )
  )
)

This logic:

Always processes 1:1 chat messages
Only processes group/meeting chat messages when the bot is @mentioned
Filters out bot’s own messages (prevents infinite loops)
Filters out system events (member added/removed, etc.)

To also respond to replies in group chats (assuming they’re continuing a conversation):

or(
  outputs('Compose_isMentioned'),
  outputs('Compose_isReply')
)

8. Send Acknowledgment

Action: HTTP Request (Teams connector)
URI: /v1.0/me/chats/@{item()?['conversationId']}/messages
Method: POST
Body: {
  "body": {
    "contentType": "html",
    "content": "{{username}}, working on your question. Please wait until I reply."
  }
}

9. Build Chat History

Use a Loop on recent messages to build context:

Append to ChatHistory:
@concat(
  formatDateTime(items('Loop_Messages')?['createdDateTime'],'yyyy-MM-dd HH:mm:ss'),
  ' | ',
  items('Loop_Messages')?['from']?['user']?['displayName'],
  ' | ',
  body('htmltotext'),
  '\n'
)

10. Check/Create Conversation

Check Existing:

HTTP GET:
@{variables('API_URL')}chat/conversations/prompt_lib/@{variables('PROJECT_ID')}/?query=Teams: {{displayName}}&limit=1&source=alita

Condition: If conversation exists (total > 0):

Get conversation details
Filter for agent participant
Extract participant ID

Else (Create New):

Create conversation
Configure attachment storage
Add agent as participant

11. Handle Screenshots and Attachments

Screenshots pasted into Teams messages are stored as “hosted contents”. Process them as follows: List Hosted Contents:

Action: HTTP Request (Teams connector)
URI: /v1.0/me/chats/@{item()?['conversationId']}/messages/@{item()?['messageId']}/hostedContents
Method: GET

Loop Through Each Hosted Content:

For each: body('List_Hosted_Contents')['value']

Get Screenshot Content:

URI: /v1.0/me/chats/@{item()?['conversationId']}/messages/@{item()?['messageId']}/hostedContents/@{items('Loop_Screenshots')['id']}/$value
Method: GET

Check if Image (Condition):

@or(
  contains(outputs('Get_Screenshot')?['body']?['$content-type'], 'image/png'),
  contains(outputs('Get_Screenshot')?['body']?['$content-type'], 'image/jpeg')
)

Generate Filename:

@concat(
  'screenshot_',
  item()?['messageId'],
  '_',
  substring(items('Loop_Screenshots')?['id'], 0, 8),
  if(
    contains(outputs('Get_Screenshot')?['headers']?['Content-Type'], 'png'),
    '.png',
    '.jpg'
  )
)

Convert to Binary:

@base64ToBinary(outputs('Get_Screenshot')?['body']?['$content'])

Upload to ELITEA:

HTTP POST: @{variables('API_URL')}chat/attachments/prompt_lib/@{variables('PROJECT_ID')}/@{ConversationID}
Body: {
  "$content-type": "multipart/form-data",
  "$multipart": [
    {
      "headers": {
        "Content-Disposition": "form-data; name=\"file\"; filename=\"{{ScreenshotName}}\""
      },
      "body": {
        "$content-type": "{{Content-Type}}",
        "$content": "{{BinaryContent}}"
      }
    },
    {
      "headers": {
        "Content-Disposition": "form-data; name=\"overwrite_attachments\""
      },
      "body": "1"
    }
  ]
}

Append to attachment_info:

Value: {'name': '@{outputs('ScreenshotName')}'},

Clean Trailing Comma (after loop):

Condition: @endsWith(variables('attachment_info'), ',')
If Yes: @slice(variables('attachment_info'), 0, sub(length(variables('attachment_info')), 1))

12. Send Message to Agent

Compose User Input with Context: Include message context (reply/forward indicators) and chat history:

@concat(
  outputs('Compose_MessageContext'),
  body('Get_Message_details')?['from']?['user']?['displayName'],
  ' says: ',
  body('Get_Message_details')?['body']?['content'],
  '\n\n<ChatHistory>\n',
  variables('ChatHistory'),
  '</ChatHistory>',
  '\n\n<ReplyInstructions>',
  'This is a Teams ', outputs('Compose_chatType'), ' request. ',
  'Conversation ID: ', item()?['conversationId'], '. ',
  'You MUST reply via Teams.',
  '</ReplyInstructions>'
)

Send to Agent:

HTTP POST: @{variables('API_URL')}chat/messages/prompt_lib/@{variables('PROJECT_ID')}/@{ConversationUUID}
Body: {
  "participant_id": {{participant_id}},
  "user_input": "{{ComposeUserInput output}}",
  "await_task_timeout": -1,
  "return_task_id": true,
  "attachments_info": @{json(concat('[', variables('attachment_info'), ']'))}
}

Complete Flow Structure

React on Teams message trigger
│
├─ Trigger: When a new chat message is added
│
├─ Initialize Variables (7 variables)
│
└─ For each Message:
    │
    ├─ Get Messages (chat history)
    ├─ Get Message details
    ├─ Get Chat Details
    ├─ Compose_chatType
    ├─ Compose_isMentioned
    ├─ Compose_isReply (optional)
    ├─ Compose_isForwarded (optional)
    ├─ List Hosted Attachments
    ├─ Compose_username
    │
    └─ Condition: Should process message?
        │
        ├─ [Yes] Process:
        │   ├─ Send acknowledgment
        │   ├─ Build chat history
        │   ├─ Check/create ELITEA conversation
        │   ├─ Process screenshots
        │   ├─ Compose user input
        │   └─ Send to agent
        │
        └─ [No] Skip (or handle system events)

Scenario 2: Process Incoming Emails

This flow processes emails sent to a monitored mailbox and routes them to ELITEA agents.

Flow Overview

Trigger: When a new email arrives (Office 365) / Recurrence (scheduled)
    │
    ├─ Filter for relevant emails (mentions, keywords)
    │
    ├─ Initialize Variables
    │
    └─ For each email:
        │
        ├─ Convert HTML body to plain text
        │
        ├─ Check SharePoint for existing conversation mapping
        │   ├─ If exists: Retrieve ELITEA conversation
        │   └─ If new: Create conversation → Store mapping
        │
        ├─ Process attachments
        │   └─ Upload to ELITEA
        │
        ├─ Compose message with metadata:
        │   - From, Subject, Body
        │   - Message ID for replies
        │   - Attachment references
        │
        ├─ Send to ELITEA agent
        │
        └─ Mark email as read

Two Approaches

Option A: Email Trigger (Real-time)

Trigger: When a new email arrives (V3)

To: Your monitored mailbox (e.g., SupportAlita@epam.com)
Processes emails as they arrive

Option B: Scheduled Check (Polling)

Trigger: Recurrence (e.g., every 1 minute)

Get emails (V3): Fetch unread emails with specific criteria
Filter: Check for @mentions or keywords
Useful for more controlled processing

Key Configuration

Email Metadata Composition

{
  "from": "@{triggerOutputs()?['body/from']}",
  "message_id": "@{triggerOutputs()?['body/id']}",
  "file_links": "@variables('filelinks')",
  "to": "@triggerOutputs()?['body/toRecipients']",
  "subject": "@{triggerOutputs()?['body/subject']}",
  "conversation_id": "@{triggerOutputs()?['body/conversationId']}",
  "received": "@{triggerOutputs()?['body/receivedDateTime']}",
  "body": "@{variables('content')}"
}

Reply Instructions

Include the message ID so the agent can reply:

<Instructions>Reply via email, message id is:'@{items('Apply_to_each')?['id']}'</Instructions>

Conversation Persistence with SharePoint

Use a SharePoint list to map email conversations to ELITEA conversations:

Column	Type	Description
Instance	Text	ELITEA instance (next, dev)
ConversationID	Text	Email conversation ID
EliteaConversationId	Number	ELITEA conversation ID
EliteaConversationUUID	Text	ELITEA conversation UUID
Source	Text	”Email”
Identifier	Text	Email subject

Part 2: ELITEA → Power Automate (Outbound Actions)

This section covers HTTP-triggered flows that ELITEA agents can invoke using OpenAPI tools.

Creating HTTP-Triggered Flows

HTTP triggers create webhook endpoints that ELITEA agents can call.

HTTP Request triggers require a Power Automate Premium license.

Scenario 3: Reply to Teams Channel

Allows ELITEA agents to post replies in Teams channels.

Flow Configuration

Trigger: When an HTTP request is received Request Body Schema:

{
  "type": "object",
  "properties": {
    "replyToMessageId": {"type": "string"},
    "teamId": {"type": "string"},
    "channelId": {"type": "string"},
    "body": {"type": "string"}
  }
}

Action: Reply with a message in a channel (Teams connector)

Parameter	Value
Poster	User
Location	Channel
Parent Message ID	`@triggerBody()?['replyToMessageId']`
Team	`@triggerBody()?['teamId']`
Channel	`@triggerBody()?['channelId']`
Message Body	`@triggerBody()?['body']`

Response:

{"ok": true, "message": "Teams reply was sent"}

Scenario 4: Reply to Teams Chat

Allows ELITEA agents to send messages to Teams 1:1 or group chats.

Flow Configuration

Trigger: When an HTTP request is received Request Body Schema:

{
  "type": "object",
  "properties": {
    "conversationid": {"type": "string"},
    "body": {"type": "string"}
  }
}

Action: HTTP Request (Teams connector - Graph API)

URI: /v1.0/me/chats/@{triggerBody()?['conversationid']}/messages
Method: POST
Body: {
  "body": {
    "contentType": "html",
    "content": "{{escaped_body}}"
  }
}

The message body must be properly escaped for JSON. Use expressions to escape quotes and newlines:

@concat(
  '{"body":{"contentType":"html","content":"',
  replace(replace(triggerBody()?['body'], '"', '\\"'), '\n', '\\n'),
  '"}}'
)

Scenario 5: Send Email

Allows ELITEA agents to compose and send new emails.

Flow Configuration

Trigger: When an HTTP request is received Request Body Schema:

{
  "type": "object",
  "properties": {
    "To": {"type": "string"},
    "CC": {"type": "string"},
    "subject": {"type": "string"},
    "body": {"type": "string"}
  }
}

Action: Send an email (V2) - Office 365 Outlook

Parameter	Value
To	`@triggerBody()?['To']`
Subject	`[Support] @{triggerBody()?['subject']}`
Body	`@triggerBody()?['body']`
CC	`@triggerBody()?['CC']`

Scenario 6: Reply to Email

Allows ELITEA agents to reply to existing email threads.

Flow Configuration

Trigger: When an HTTP request is received Request Body Schema:

{
  "type": "object",
  "properties": {
    "messageid": {"type": "string"},
    "body": {"type": "string"}
  }
}

Action: Reply to email (V3) - Office 365 Outlook

Parameter	Value
Message ID	`@triggerBody()?['messageid']`
Body	`@triggerBody()?['body']`
Reply All	`true`

Configuring OpenAPI Tools in ELITEA

To enable ELITEA agents to call Power Automate flows, create an OpenAPI tool specification.

Example: Reply to Email OpenAPI Spec

{
  "openapi": "3.0.1",
  "info": {
    "title": "Power Automate Email Reply",
    "version": "1.0.0",
    "description": "Replies to an existing email message via Power Automate"
  },
  "servers": [
    {
      "url": "https://{{environment}}.api.powerplatform.com:443"
    }
  ],
  "paths": {
    "/powerautomate/automations/direct/workflows/{{workflow_id}}/triggers/manual/paths/invoke": {
      "post": {
        "operationId": "ReplyEmail",
        "summary": "Reply to email",
        "description": "Replies to an email identified by messageid",
        "requestBody": {
          "required": true,
          "content": {
            "application/json": {
              "schema": {
                "type": "object",
                "required": ["messageid", "body"],
                "properties": {
                  "messageid": {
                    "type": "string",
                    "description": "Unique identifier of the email to reply to"
                  },
                  "body": {
                    "type": "string",
                    "format": "html",
                    "description": "HTML-formatted email reply body"
                  }
                }
              }
            }
          }
        },
        "responses": {
          "200": {"description": "Success"},
          "400": {"description": "Bad Request"},
          "500": {"description": "Server Error"}
        }
      }
    }
  }
}

Agent Instructions for OpenAPI Tools

Include clear guidance in your agent instructions:

When replying to emails:
- Use the ReplyEmail tool with the message_id provided in the input
- Format the body as professional HTML with:
  - Clear action items
  - Proper signature with name, title, and contact info
  - EPAM branding
- Escape double quotes in HTML attributes (href=\"...\")
- Images supported via <img> tags with HTTPS URLs

Handling Attachments

Power Automate flows can upload attachments to ELITEA conversations for agent processing.

Step 1: Configure Attachment Storage

Before uploading, configure the attachment storage for the conversation:

HTTP PUT: @{variables('API_URL')}chat/attachment_storage/prompt_lib/@{variables('PROJECT_ID')}/@{ConversationID}
Body: {
  "toolkit_id": {{toolkit_id}}
}

The toolkit_id refers to a storage toolkit configured in your ELITEA project (e.g., Artifacts toolkit).

Step 2: Upload Attachment

Power Automate Format:

HTTP POST: @{variables('API_URL')}chat/attachments/prompt_lib/@{variables('PROJECT_ID')}/@{ConversationID}
Content-Type: multipart/form-data
Body: {
  "$multipart": [
    {
      "headers": {
        "Content-Disposition": "form-data; name=\"file\"; filename=\"{{filename}}\""
      },
      "body": {
        "$content-type": "{{content_type}}",
        "$content": "{{base64_content}}"
      }
    },
    {
      "headers": {
        "Content-Disposition": "form-data; name=\"overwrite_attachments\""
      },
      "body": "1"
    }
  ]
}

curl Example:

curl -X POST "https://next.elitea.ai/api/v1/chat/attachments/prompt_lib/{{PROJECT_ID}}/{{CONVERSATION_ID}}" \
  -H "Authorization: Bearer {{YOUR_PAT}}" \
  -F "file=@/path/to/document.pdf" \
  -F "overwrite_attachments=1"

curl with Base64 Content (inline):

curl -X POST "https://next.elitea.ai/api/v1/chat/attachments/prompt_lib/{{PROJECT_ID}}/{{CONVERSATION_ID}}" \
  -H "Authorization: Bearer {{YOUR_PAT}}" \
  -H "Content-Type: multipart/form-data" \
  -F "file=@-;filename=image.png;type=image/png" <<< "$(base64 -d <<< '{{BASE64_CONTENT}}')" \
  -F "overwrite_attachments=1"

Postman Configuration:

Method: POST
URL: https://next.elitea.ai/api/v1/chat/attachments/prompt_lib/{{PROJECT_ID}}/{{CONVERSATION_ID}}
Headers:
- Authorization: Bearer {{YOUR_PAT}}
Body: Select form-data
Key Type Value
file File Select your file
overwrite_attachments Text 1

Key	Type	Value
file	File	Select your file
overwrite_attachments	Text	`1`

ELITEA supports common file types including images (PNG, JPEG, GIF), documents (PDF, DOCX, TXT), and data files (CSV, JSON). Check your agent’s configuration for specific file size limits.

Step 3: Include in Message

Reference uploaded attachments in your message:

{
  "participant_id": "@{participant_id}",
  "user_input": "{{message}}",
  "await_task_timeout": -1,
  "return_task_id": true,
  "attachments_info": [{"name": "{{filename1}}"}, {"name": "{{filename2}}"}]
}

Processing Attachments from Different Sources

Teams Hosted Content (Images)

1. List Hosted Attachments:
   GET /v1.0/me/chats/@{conversationId}/messages/@{messageId}/hostedContents

2. Get Content:
   GET /v1.0/me/chats/@{conversationId}/hostedContents/@{attachmentId}/$value

3. Convert to binary:
   @base64ToBinary(outputs('GetAttachmentContent')?['body']?['$content'])

4. Upload to ELITEA

Email Attachments

1. Get Attachment:
   Use Office 365 "Get Attachment (V2)" action

2. Extract content:
   @outputs('Get_Attachment_(V2)')?['body/contentBytes']

3. Upload to ELITEA

Error Handling Pattern

All HTTP-triggered flows should implement proper error handling:

Scope - Try
    │
    ├─ Main logic actions
    │
    └─ Response (200):
        {"ok": true, "message": "Success message"}

Scope - Catch (Run after: Try → Failed, Skipped, TimedOut)
    │
    └─ Response (500):
        {
          "ok": false,
          "message": "Processing failed",
          "error": "@{string(result('Scope_-_Try'))}"
        }

Complete Flow Examples

Example 1: Teams Bot Flow Structure

React on Teams message trigger
│
├─ Trigger: When a new chat message is added
│
├─ Initialize Variables:
│   ├─ ChatHistory (String)
│   ├─ API_URL: "https://next.elitea.ai/api/v1/"
│   ├─ AGENT_ID: "62"
│   ├─ AGENT_VERSION_ID: "93"
│   ├─ PROJECT_ID: 630
│   ├─ attachments (String)
│   └─ attachment_info (String)
│
└─ For each Message:
    │
    ├─ Get Messages (recent history)
    ├─ Get Message details
    ├─ Get Chat Details                    ← NEW: Get chat type
    ├─ Compose_chatType                    ← NEW: oneOnOne/group/meeting
    ├─ Compose_isMentioned                 ← NEW: Check mentions array
    ├─ Compose_isReply (optional)          ← NEW: Detect replies
    ├─ Compose_isForwarded (optional)      ← NEW: Detect forwards
    ├─ List Hosted Attachments
    ├─ Compose username
    │
    └─ Condition: Should process message?
        │                                   ↓ Enhanced condition with chat type
        ├─ [Yes] Process message:
        │   ├─ Send acknowledgment
        │   ├─ Parse chat history
        │   ├─ Select relevant messages
        │   ├─ Loop to build history string
        │   │
        │   ├─ Check existing conversation (HTTP GET)
        │   ├─ Parse response
        │   │
        │   └─ Condition: Conversation exists?
        │       │
        │       ├─ [Yes] Use existing:
        │       │   ├─ Get conversation details
        │       │   ├─ Filter for agent participant
        │       │   ├─ Process screenshots
        │       │   └─ Send message with context
        │       │
        │       └─ [No] Create new:
        │           ├─ Create conversation
        │           ├─ Configure attachment storage
        │           ├─ Add agent participant
        │           ├─ Process screenshots
        │           └─ Send message with context
        │
        └─ [No] Handle system events or skip

The enhanced condition ensures:

1:1 chats: All messages processed
Group chats: Only @mentioned messages processed
Meeting chats: Only @mentioned messages processed

Example 2: Email Processing Flow Structure

CheckEmails (Scheduled)
│
├─ Trigger: Recurrence (every 1 minute)
│
├─ Get emails (V3):
│   └─ Folder: Inbox, Unread only, Top 10
│
├─ Filter emails with mentions (@Elitea Bot)
│
├─ Initialize Variables:
│   └─ (Same as Teams, plus Source, ConversationID, etc.)
│
└─ For each filtered email:
    │
    ├─ Get items from SharePoint (existing mapping?)
    │
    └─ Condition: Mapping exists?
        │
        ├─ [Yes] Use existing conversation:
        │   ├─ Get ELITEA conversation details
        │   └─ Extract participant ID
        │
        └─ [No] Create new:
            ├─ Create ELITEA conversation
            ├─ Store mapping in SharePoint
            ├─ Configure attachment storage
            └─ Add agent participant
    │
    ├─ Process attachments:
    │   └─ Upload each to ELITEA
    │
    ├─ Convert HTML to text
    │
    ├─ Send message with instructions:
    │   └─ "Reply via email, message id: {{id}}"
    │
    └─ Mark email as read

Example 3: HTTP Reply Flow Structure

Reply to Teams message Http trigger
│
├─ Trigger: When an HTTP request is received
│   └─ Schema: {conversationid, body}
│
├─ Scope - Try:
│   ├─ Send Graph API request (POST message)
│   └─ Response 200: {"ok": true, "message": "..."}
│
└─ Scope - Catch:
    └─ Response 500: {"ok": false, "error": "..."}

Verification

After setting up your flows:

Test Inbound Flows (Power Automate → ELITEA)

Trigger the Flow:
- For Teams: Send a message to the monitored chat
- For Email: Send an email to the monitored mailbox
- Use the Test button in Power Automate for manual testing
Check ELITEA:
- Navigate to your ELITEA Chat
- Verify the conversation was created
- Confirm the agent received and processed the message
Review Flow History:
- Check the flow run history for any errors
- Examine HTTP response bodies for debugging

Test Outbound Flows (ELITEA → Power Automate)

Get the HTTP Trigger URL:
- Open your flow
- Copy the HTTP POST URL from the trigger

Test with curl or Postman:

curl -X POST "{{trigger_url}}" \
  -H "Content-Type: application/json" \
  -d '{"messageid": "test", "body": "<p>Test message</p>"}'

Configure ELITEA Agent:
- Add the OpenAPI tool to your agent
- Test the agent with appropriate prompts

Troubleshooting

Common Issues

Issue	Possible Cause	Solution
401 Unauthorized (ELITEA)	Invalid or expired PAT	Generate a new Personal Access Token
404 Not Found (ELITEA)	Incorrect Project/Agent ID	Verify IDs in ELITEA Settings
400 Bad Request	Malformed JSON body	Check JSON syntax and required fields
Timeout	Agent processing time	Increase timeout or use async pattern
Infinite loop (Teams)	Bot responding to own messages	Add condition to filter bot messages
HTTP trigger not found	Flow not saved/published	Save and enable the flow
Teams message not sent	Graph API permissions	Check Teams connector permissions
Bot not responding in group chat	@mention not detected	Use mentions array with bot user ID
isMentioned returns wrong value	Checking body content instead of mentions	Use `contains(string(mentions), 'BOT_USER_ID')`
Screenshots not uploaded	Hosted content not found	Check hostedContents API path includes messageId

Debug Tips

Add Compose actions to log intermediate values during development. View outputs in the flow run history.

Use Run after settings to handle failures gracefully
Add error handling with Scope and Try-Catch patterns
Check Power Automate run history for detailed error messages
Use the Peek code feature to see raw JSON of actions
Test HTTP requests independently using Postman

Preventing Infinite Loops

For Teams integrations, always check:

The message sender is not the bot account
The message type is “message” (not system events)
The eventDetail is null (not member added/removed events)
For group/meeting chats: the bot is @mentioned

Basic Condition (1:1 chats only):

@and(
  not(equals(outputs('Compose_username'), 'Elitea Bot')),
  equals(body('Get_Message_details')?['messageType'], 'message'),
  equals(body('Get_Message_details')?['eventDetail'], null)
)

Enhanced Condition (with chat type filtering):

@and(
  not(equals(outputs('Compose_username'), 'Elitea Bot')),
  equals(body('Get_Message_details')?['messageType'], 'message'),
  equals(body('Get_Message_details')?['eventDetail'], null),
  or(
    equals(outputs('Compose_chatType'), 'oneOnOne'),
    and(
      or(
        equals(outputs('Compose_chatType'), 'group'),
        equals(outputs('Compose_chatType'), 'meeting')
      ),
      outputs('Compose_isMentioned')
    )
  )
)

This enhanced condition:

Always processes 1:1 chat messages
Only processes group/meeting messages when @mentioned
Filters out all system events and bot’s own messages

Detecting @Mentions Reliably

Use the mentions array from the message details rather than parsing HTML content: By Bot User ID (most reliable):

@contains(string(body('Get_Message_details')?['mentions']), 'YOUR_BOT_USER_ID')

By Display Name:

@contains(string(body('Get_Message_details')?['mentions']), '"displayName":"Elitea Bot"')

Check the mentions array in a test message. Each mention includes the user’s id field:

{
  "mentions": [{
    "mentioned": {
      "user": {
        "id": "d346094f-19d8-48e7-b53e-fd7909afff91",
        "displayName": "Elitea Bot"
      }
    }
  }]
}

Security Best Practices

Store Credentials Securely:
- Use Power Automate’s Connections for Microsoft 365 authentication
- Store ELITEA PATs securely (consider Azure Key Vault for production)
- Never hardcode tokens in flow definitions
Limit Permissions:
- Create dedicated service accounts for automation
- Use least-privilege principles for API tokens
- Restrict flow access to authorized users
Monitor and Audit:
- Review flow run history regularly
- Set up alerts for failed runs
- Enable logging for security-sensitive operations
Validate Inputs:
- Sanitize user inputs before processing
- Validate message sources
- Implement rate limiting for HTTP triggers

ELITEA API Integration Langfuse

​Introduction

​Purpose and Overview

​Key Terms

​Prerequisites

​ELITEA API Overview

​Core Endpoints

​Base URLs

​Authentication

​Part 1: Power Automate → ELITEA (Inbound Triggers)

​Setup and Configuration

​Step 1: Prepare ELITEA Agent

​Step 2: Generate Personal Access Token

​Scenario 1: React to Teams Messages

​Flow Overview

​Step-by-Step Configuration

​1. Create the Flow

​2. Initialize Variables

​3. Process Messages

​4. Detect Chat Type

​5. Detect @Mentions

​6. Detect Reply and Forwarded Messages

​7. Filter Messages (Main Condition)

​8. Send Acknowledgment

​9. Build Chat History

​10. Check/Create Conversation

​11. Handle Screenshots and Attachments

​12. Send Message to Agent

​Complete Flow Structure

​Scenario 2: Process Incoming Emails

​Flow Overview

​Two Approaches

​Option A: Email Trigger (Real-time)

​Option B: Scheduled Check (Polling)

​Key Configuration

​Email Metadata Composition

​Reply Instructions

​Conversation Persistence with SharePoint

​Part 2: ELITEA → Power Automate (Outbound Actions)

​Creating HTTP-Triggered Flows

​Scenario 3: Reply to Teams Channel

​Flow Configuration

​Scenario 4: Reply to Teams Chat

​Flow Configuration

​Scenario 5: Send Email

​Flow Configuration

​Scenario 6: Reply to Email

​Flow Configuration

​Configuring OpenAPI Tools in ELITEA

​Example: Reply to Email OpenAPI Spec

​Agent Instructions for OpenAPI Tools

​Handling Attachments

​Step 1: Configure Attachment Storage

​Step 2: Upload Attachment

​Step 3: Include in Message

​Processing Attachments from Different Sources

​Teams Hosted Content (Images)

​Email Attachments

​Error Handling Pattern

​Complete Flow Examples

​Example 1: Teams Bot Flow Structure

​Example 2: Email Processing Flow Structure

​Example 3: HTTP Reply Flow Structure

​Verification

​Test Inbound Flows (Power Automate → ELITEA)

​Test Outbound Flows (ELITEA → Power Automate)

​Troubleshooting

​Common Issues

​Debug Tips

​Preventing Infinite Loops

​Detecting @Mentions Reliably

​Security Best Practices

Introduction

Purpose and Overview

Key Terms

Prerequisites

ELITEA API Overview

Core Endpoints

Base URLs

Authentication

Part 1: Power Automate → ELITEA (Inbound Triggers)

Setup and Configuration

Step 1: Prepare ELITEA Agent

Step 2: Generate Personal Access Token

Scenario 1: React to Teams Messages

Flow Overview

Step-by-Step Configuration

1. Create the Flow

2. Initialize Variables

3. Process Messages

4. Detect Chat Type

5. Detect @Mentions

6. Detect Reply and Forwarded Messages

7. Filter Messages (Main Condition)

8. Send Acknowledgment

9. Build Chat History

10. Check/Create Conversation

11. Handle Screenshots and Attachments

12. Send Message to Agent

Complete Flow Structure

Scenario 2: Process Incoming Emails

Flow Overview

Two Approaches

Option A: Email Trigger (Real-time)

Option B: Scheduled Check (Polling)

Key Configuration

Email Metadata Composition

Reply Instructions

Conversation Persistence with SharePoint

Part 2: ELITEA → Power Automate (Outbound Actions)

Creating HTTP-Triggered Flows

Scenario 3: Reply to Teams Channel

Flow Configuration

Scenario 4: Reply to Teams Chat

Flow Configuration

Scenario 5: Send Email

Flow Configuration

Scenario 6: Reply to Email

Flow Configuration

Configuring OpenAPI Tools in ELITEA

Example: Reply to Email OpenAPI Spec

Agent Instructions for OpenAPI Tools

Handling Attachments

Step 1: Configure Attachment Storage

Step 2: Upload Attachment

Step 3: Include in Message

Processing Attachments from Different Sources

Teams Hosted Content (Images)

Email Attachments

Error Handling Pattern

Complete Flow Examples

Example 1: Teams Bot Flow Structure

Example 2: Email Processing Flow Structure

Example 3: HTTP Reply Flow Structure

Verification

Test Inbound Flows (Power Automate → ELITEA)

Test Outbound Flows (ELITEA → Power Automate)

Troubleshooting

Common Issues

Debug Tips

Preventing Infinite Loops

Detecting @Mentions Reliably

Security Best Practices
